Mechanical Component Quality Inspection for Precision Manufacturing

Qingdao Xuxiangtai Machinery continues to refine its end-to-end quality inspection system, utilizing standardized procedures to ensure the quality of precision-manufactured components and empower the equipment industry.

Components serve as the core building blocks of automation equipment and construction machinery; machining precision, dimensional tolerances, and surface quality directly impact the assembly and operational stability of the finished equipment. Issues such as dimensional deviations, surface defects, and non-compliance with geometric tolerances represent key quality risks that are strictly controlled during the inspection process. Grounded in rigorous precision quality control, Xuxiangtai has established a comprehensive inspection workflow, maintaining strict oversight at every stage—from raw material verification to the final inspection of finished products.

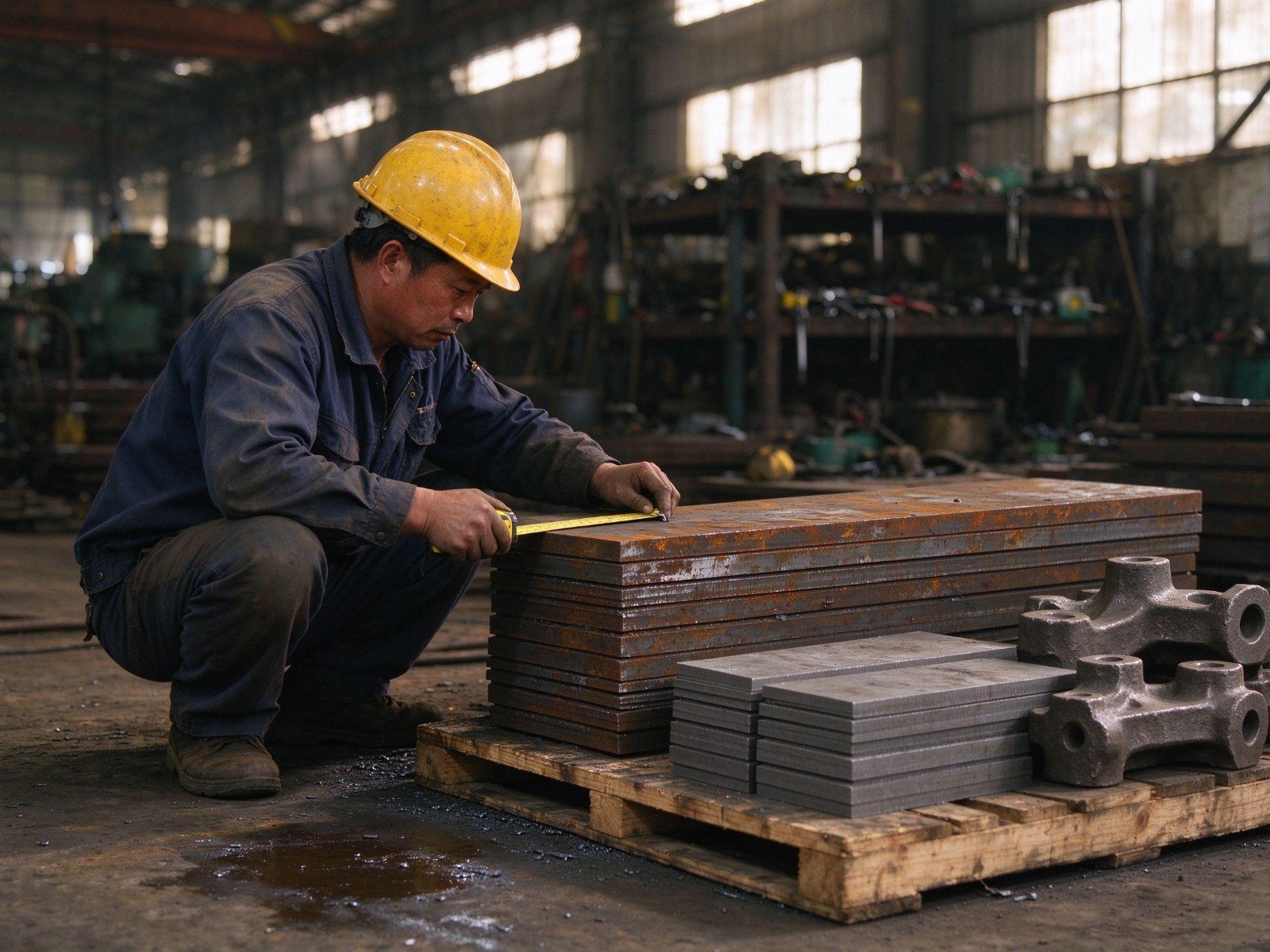

Incoming Material Inspection: Mitigating Quality Risks at the Source

The quality inspection team verifies material certificates and conducts spot checks based on the component's intended operating conditions and material specifications. Inspections cover the visual integrity of profiles and cast/forged blanks, as well as the dimensions and thickness of plate materials; this ensures that substandard raw materials are excluded from the production process and allows for the proactive control of material properties.

In-Process Inspections: Real-Time Control of Machining Precision

Quality inspections for mechanical components are conducted in the workshop using precision measuring tools, with checks performed

immediately upon the completion of each machining step:

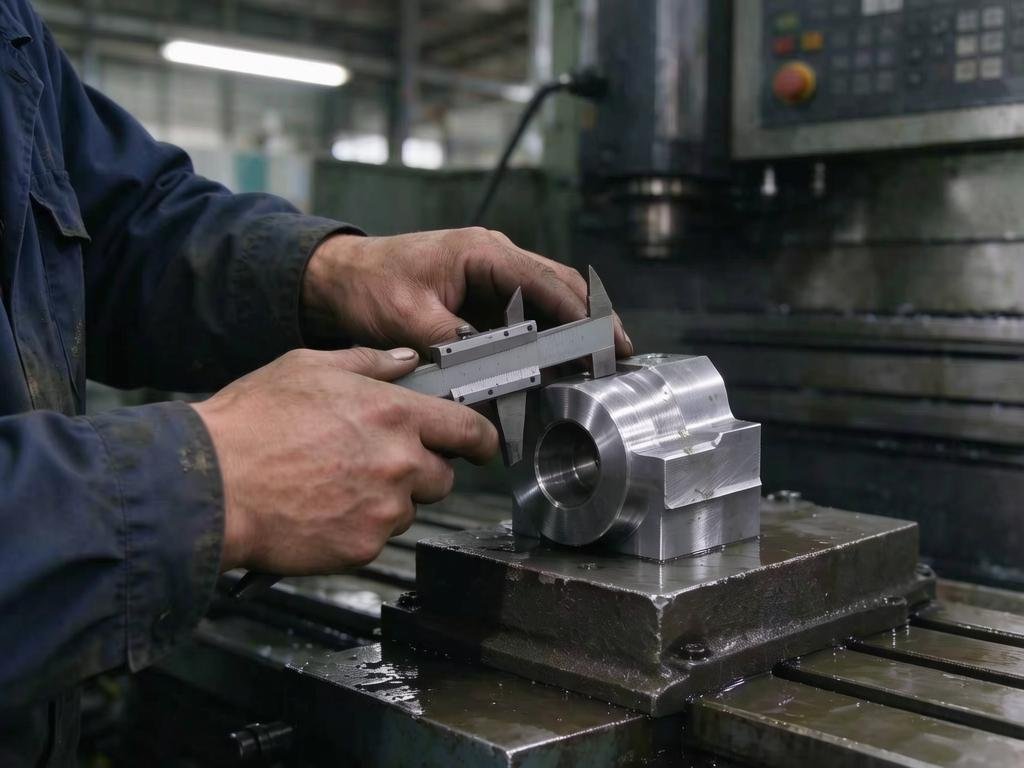

• Dimensional Inspection: Calipers and micrometers are used to measure critical dimensions and strictly control tolerances;

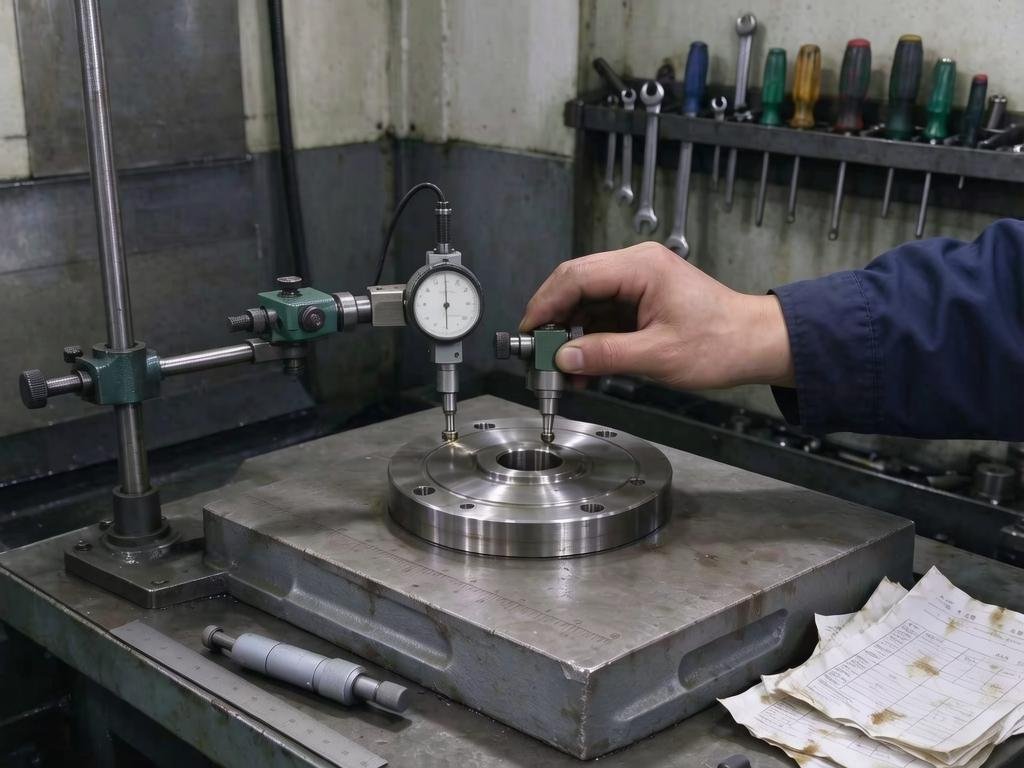

• Geometric Inspection: Dial indicators and squares verify parallelism and perpendicularity to ensure accurate assembly datums;

• Visual Inspection: Surfaces are examined for tool marks, dents, or cracks, with any defects promptly recorded;

• Process Review: Non-conforming components are marked and quarantined; rework is performed only after the root cause is analyzed, preventing defective parts from proceeding to the next stage.

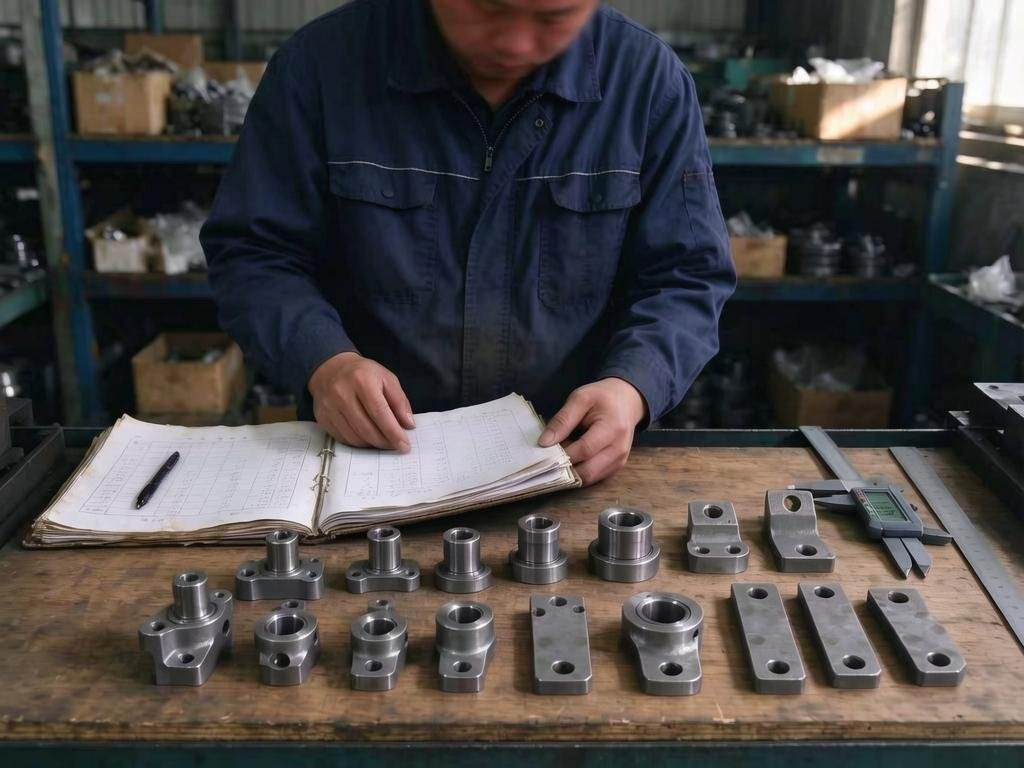

Final Product Inspection: Ensuring Compliance with Delivery Standards

Dedicated inspection standards are established for finished components, followed by a comprehensive final inspection. Assembly dimensions, thread precision, and surface roughness are verified item-by-item against customer drawings; detailed inspection records are maintained to ensure that all finished product specifications meet the requirements of the drawings and customer acceptance criteria.

As a Qingdao-based machining facility, the company undertakes the processing of components made from materials such as carbon steel, stainless steel, and aluminum alloy. Our product range includes mechanical mounting brackets, transmission components, equipment bases, and custom-machined parts, serving sectors such as automation, industrial control, and construction machinery; we also offer support for drawing optimization and prototype production.

Moving forward, Qingdao Xuxiangtai Machinery is committed to continuously refining its quality inspection systems, upgrading testing capabilities, and standardizing in-process inspection procedures. We aim to enhance our quality control for precision-manufactured components and provide stable, reliable machining support services to equipment manufacturing clients both domestically and internationally. We welcome business partners to visit our facility for inspections and discussions.
