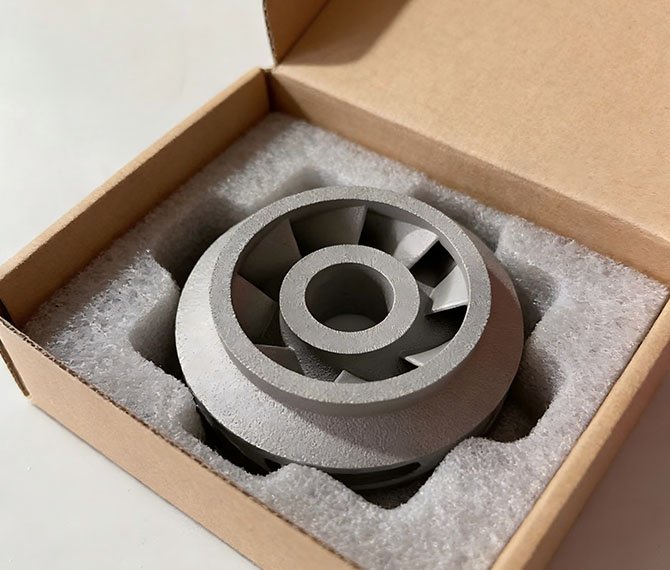

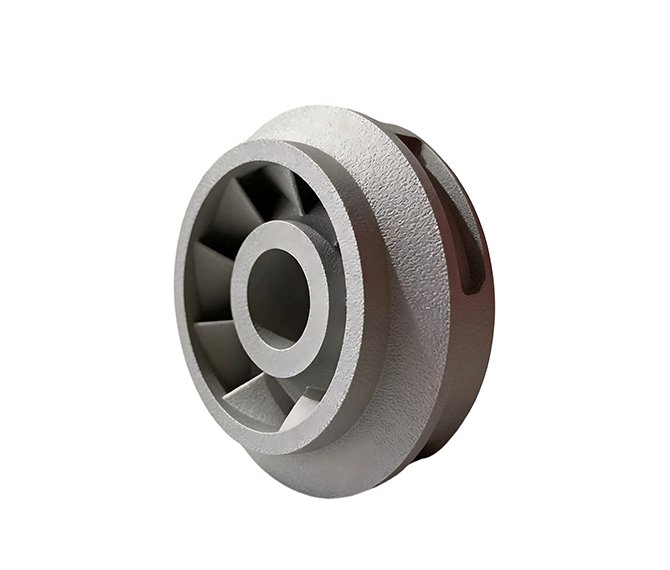

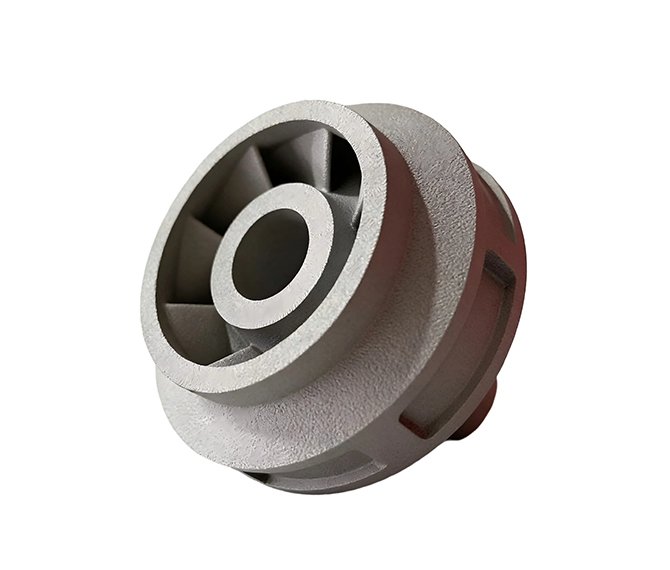

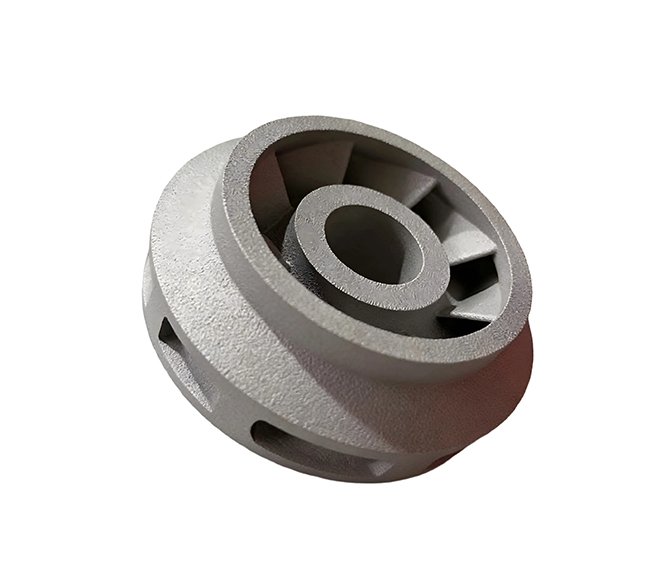

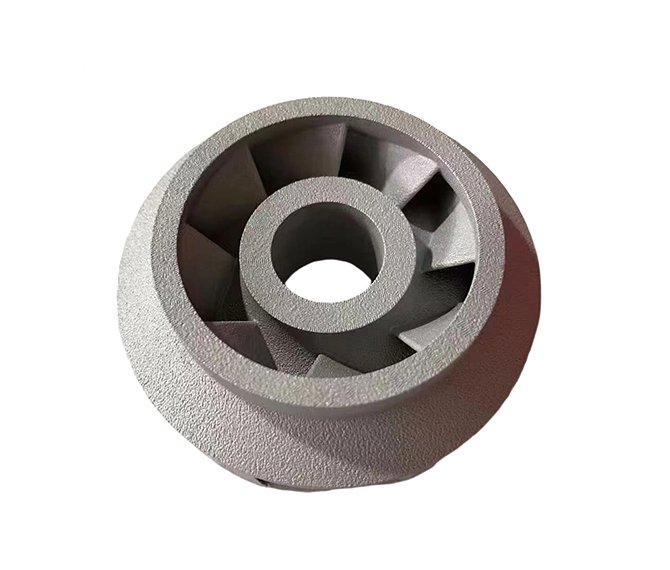

3D printing closed impeller

This product is made of titanium alloy TC4 (Ti-6Al-4V) as raw material and is integrally formed by selective laser melting (SLM) process.

3D-printed titanium alloy closed impellers are mainly used for fluid transport and power boosting, and have significant advantages in lightweighting, complex structure realization and corrosion resistance.

INQUIRY NOW ADD TO CART

Product Details

Core features and advantages

Feature Dimension	Detailed Explanation
Material properties	Density: 4.51 g/cm³ . Mechanical properties : Tensile strength: ≥900 MPa , Yield strength: ≥820 MPa , Elongation: ≥10% . Corrosion resistance , high temperature resistance ( 450–500℃), can withstand even higher temperatures for short periods.
Technological advantages	Selective Laser Melting (SLM) ensures product quality: 1. Complex structure integral molding : It can directly print complex structures such as internal flow channels and blades of closed impellers . 2. High precision and consistency : dimensional accuracy up to ±0.1 mm, high internal flow channel geometric accuracy. 3. High material utilization rate : Material utilization rate >90%, significantly reducing costs and waste. 4. Short production cycle : From 3D model to finished product, it only takes a few days, without the need for mold making. 5. Support-free/less support design : Optimize the printing process to achieve supportless internal structure forming, reducing post-processing work.
Surface treatment	The original printed surface roughness Ra≈6.3–12.5 μm, with a metallic matte finish. Various treatments are available , including glass bead or alumina sandblasting , polishing, and coating, to meet customer needs.
Application performance	1. Fluid efficiency improved by 5-10% 2. Achieve lightweight design to reduce equipment load and energy consumption. 3. It has strong corrosion resistance and can adapt to harsh environments. 4. It can operate stably at high speeds (>10,000 rpm) .

Technical parameters

Material standards : ASTM B85/B85M / ISO 3522

Process Standard : Selective Laser Melting (SLM) process for one-piece molding

Size range : can be customized according to customer drawings.

Main standards : Can comply with ASME B16.11, GB/T 14626, HG/T 21634, etc., or be manufactured according to customer drawings.

Inspection standards : 100% dimensional inspection, penetrant testing (PT), radiographic testing (RT), pressure testing and material reports are available.

Typical application areas

1. Aerospace : Fuel pumps for aircraft engines, hydraulic pump impellers , booster pumps for aerospace liquid oxygen/kerosene propulsion systems.

2. Oil and Chemical Industry and Energy : Chemical process pumps, impellers for pumps containing corrosion-resistant media , high-pressure pumps for seawater desalination, and booster pumps for reverse osmosis systems.

3. Medical and Life Sciences : Artificial Heart Assist Device (VAD) Blood Pump Impeller

4. High-end equipment and industrial manufacturing : high-speed centrifuges, turbocharger impellers , and fuel cell air compressor impellers for new energy vehicles.

Quality control

The design and simulation phase, along with four stages—material control, process monitoring , post-processing, and inspection—ensure that tolerances and accuracy meet customer standards.

Service Support

We support customized production based on drawings, small-batch trial production, and large-scale production, and provide comprehensive technical consultation and after-sales support.
