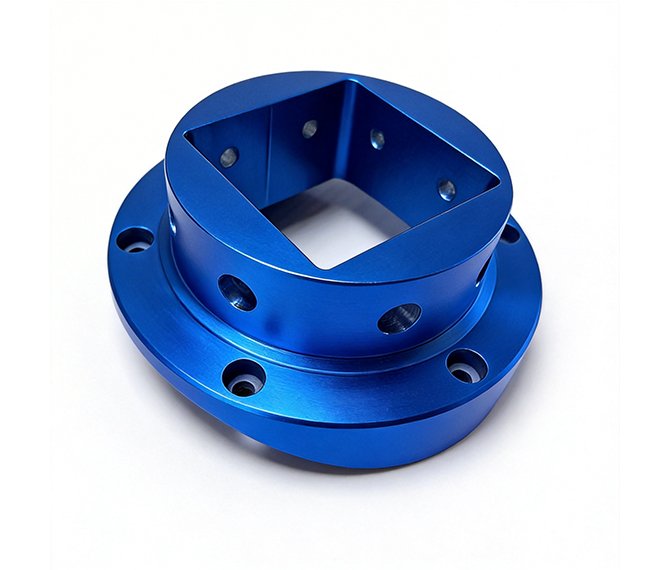

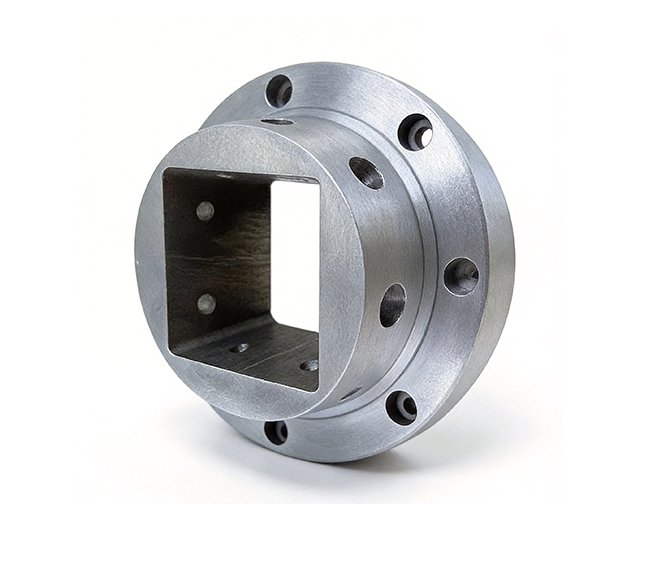

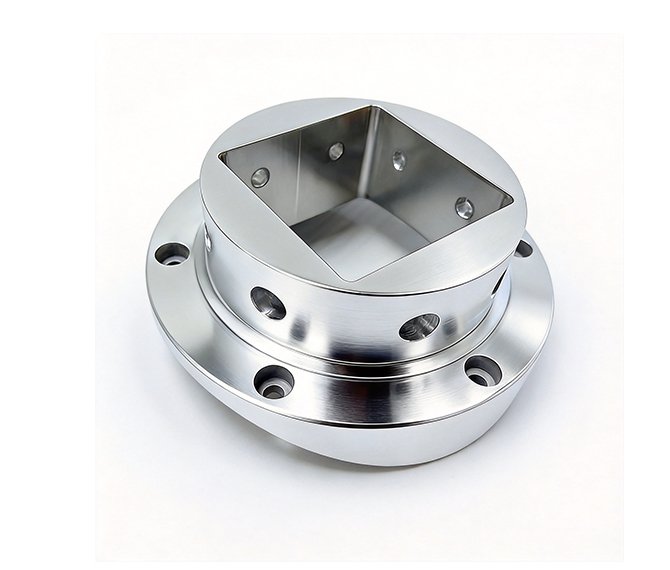

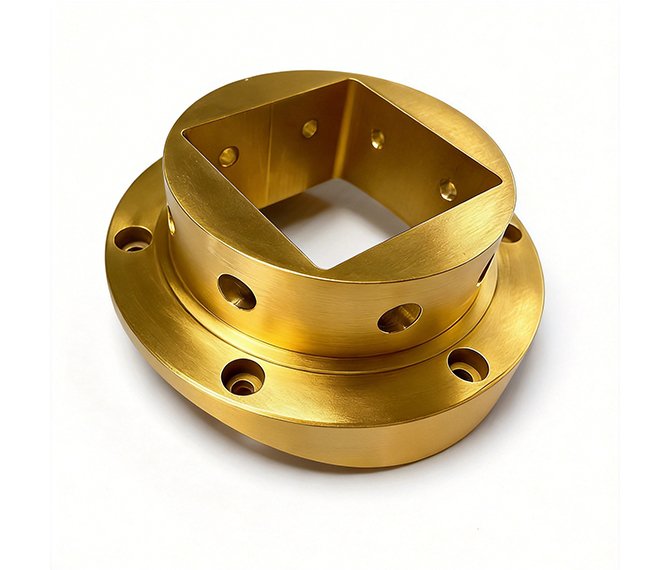

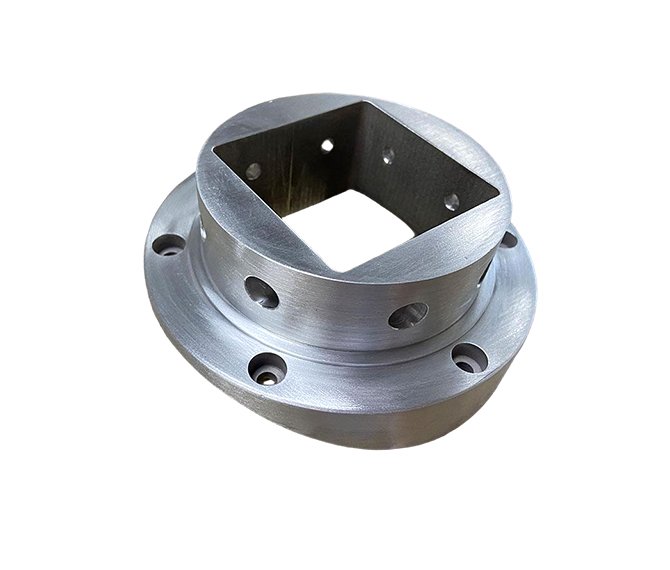

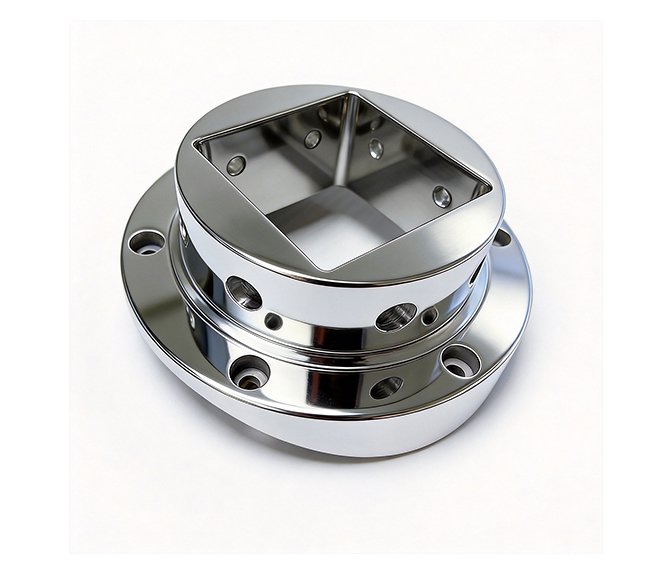

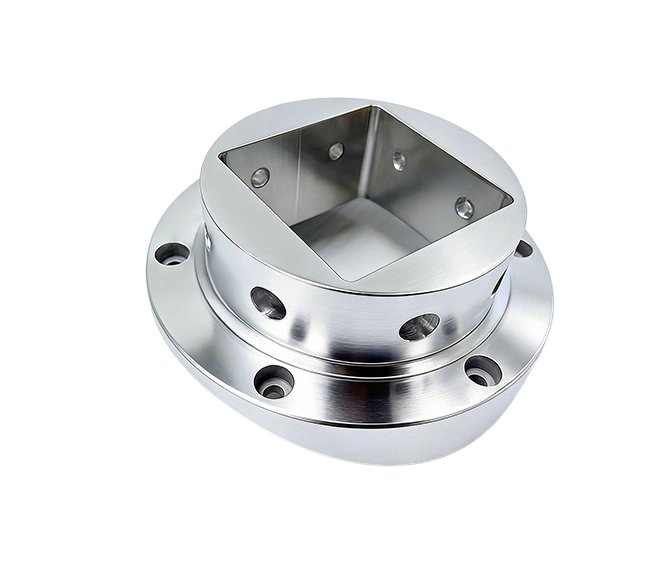

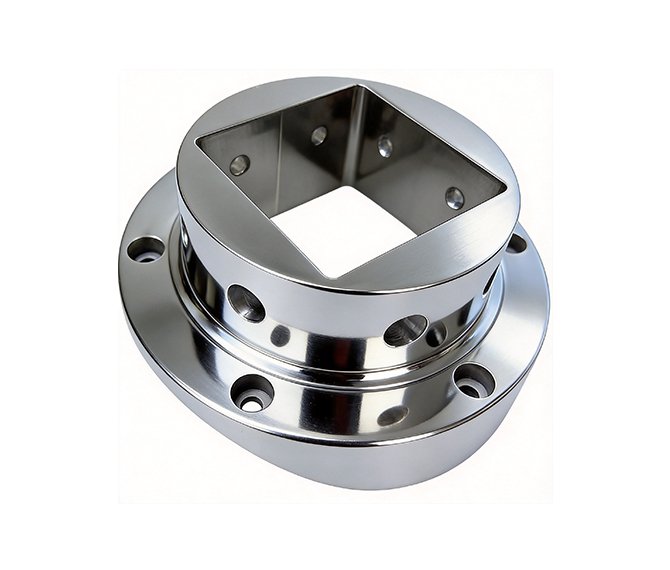

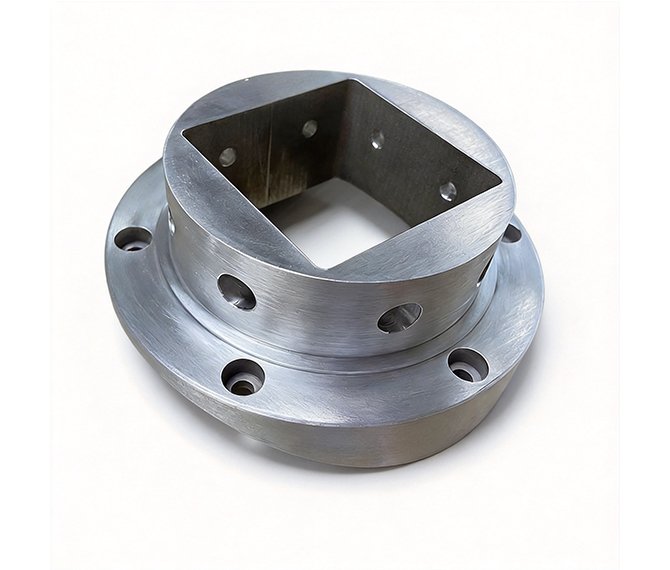

CNC precision machined aluminum alloy and stainless steel flange connectors

Structure and Manufacturing Process

1.The entire structure is machined from bar stock using five-axis CNC milling, resulting in a precision-machined surface with a high degree of smoothness.

The bottom is a circular flange with multiple mounting holes for fixing to the equipment base or platform.

The central part is a cylindrical body with radial holes on the sides for mounting sensors, oil nozzles, or fluid piping interfaces.

o The top is a square inner cavity with threaded holes/counterhead holes on the inner wall for mounting square components, modules, or as a positioning cavity.

2. Materials and Performance

3. Common materials are 6061/7075 aluminum alloy (lightweight, good heat dissipation) or 304/316 stainless steel (corrosion resistant, high strength).

 Surface treatments such as anodizing, passivation, or electroplating can be performed upon request to improve wear resistance and corrosion resistance.

4. Typical Application Scenarios

5.Automation Equipment: As a mounting adapter for robot end effectors, grippers, or sensors.

 Precision Instruments: Used for positioning and fixing optical equipment and testing instruments.

 Industrial Fluid Systems: As a connecting base for fluid distribution chambers or valves and pumps.
